main product photo
IQPH058
IQ4 Hub 915 MHz - AT&T
SKU
179859
MPN:
IQPH058
7" Touchscreen 7" Touchscreen
8 Core Processor 8-Core Processor
LTE & WiFi Dual Path LTE & WiFi Dual Path
Report Incorrect Information

Overview

Specifications

Support

Qolsys IQPH058 IQ4 Hub 915 MHz - AT&T. The IQ4 Hub is a 7" all-in-one touchscreen with 8 core processor, LTE & WiFi Dual Path. The IQ4 Hub offers all the most popular features for users, without some of the more exotic features that many users may deem unnecessary. By including only the most desirable features, Qolsys is able to keep the price of the IQ4 Hub down. This IQ panel only supports a single RF frequency for sensors. This too helps to keep the price down, at a time when users are choosing to prioritize low prices over esoteric features.

Features

  • 7" Touchscreen
  • Bluetooth disarming and music streaming
  • Live view & live answer
  • Easy installation
  • Smart mount
  • Install Wizard
  • On-screen diagnostics

Qolsys IQ4 HUB

Qolsys IQ4 HUB

IQPH054
(Verizon / PG915)		 IQPH051
(Verizon / SRF319)		 IQPH053
(Verizon / SRF433)		 IQPH052
(Verizon / SRF345)
IQPH058
(AT&T / PG915)		 IQPH055
(AT&T / SRF319)		 IQPH057
(AT&T / SRF433)		 IQPH056
(AT&T / SRF345)

Display size 7-inch LCD
Resolution 1024 x 600 pixels
Brightness 300 cd/m2
User Codes Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress
WiFi WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability
Security RF Up to 128 Devices
Bluetooth Disarm & Audio Streaming
LED Indicator Status LED
Speaker/Siren Front-facing 4W speaker + 85-dB piezo siren
Microphone 1x MEMS (Micro-Electro-Mechanical System) Microphones
Tamper Switch Dual panel and wall tamper with spring release and Smash and Grab reporting
Battery Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
Buttons Single wake/sleep button, all user controls through touch interface
Dimensions 6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm)
Power Supply 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL
Mount SmartMount for wall mounting included. SmartMount table stand

    Manuals & Technical Documents

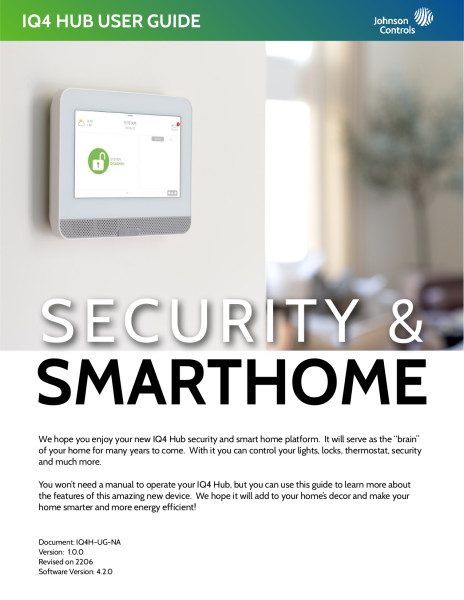

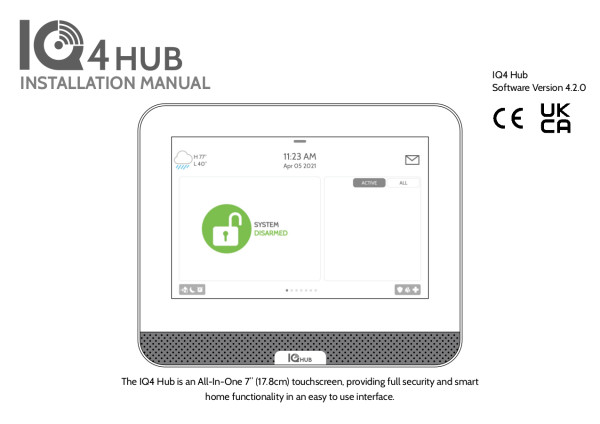

    Manualstdyohop9jxg3btze5nxg.jpgSpecificationxz5hroe708uhkykzmmya.jpgInstallation Guidespecvai9pomnjh7nz9mpe.jpg

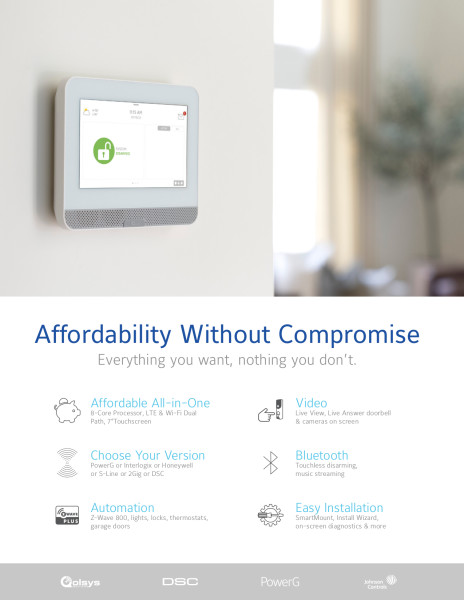

    Product Sheet

    Download
