Vertical Cable 166-255/P/PK Cat6 550MHz UTP CMP 1000' - Pink
166-255/P/PK
Cat6 550MHz UTP CMP 1000' - Pink
SKU
174179
MPN:
166-255/P/PK
- High-Performance 550MHz Category-6 Data Cable
- Suitable for High-Speed Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Flame Retardant – Plenum
Overview
This CAT6 plenum from Vertical Cable is domestically produced in the USA. CAT6 passes all appropriate fire ratings for the plenum designation, safe to use in air-handling such as drop ceilings and air-vents. This cable is made with 100% bare copper, and has excellent attenuation and crosstalk characteristics.
Features
Features
- High-Performance 550MHz Category-6 Data Cable
- Suitable for High-Speed Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Flame Retardant – Plenum
- Easily Identified Color-Striped Pairs
- Unshielded Twisted Pair (UTP) Cable
- 23AWG Solid Bare Copper Conductors
- Exceeds TIA/EIA 568-C.2 specifications
- Excellent Attenuation and Crosstalk Characteristics
- Color-coded box labels
- ETL Listed, RoHS Compliant
- MADE IN USA
- 1000ft Pull Box
Support
Manuals & Technical Documents

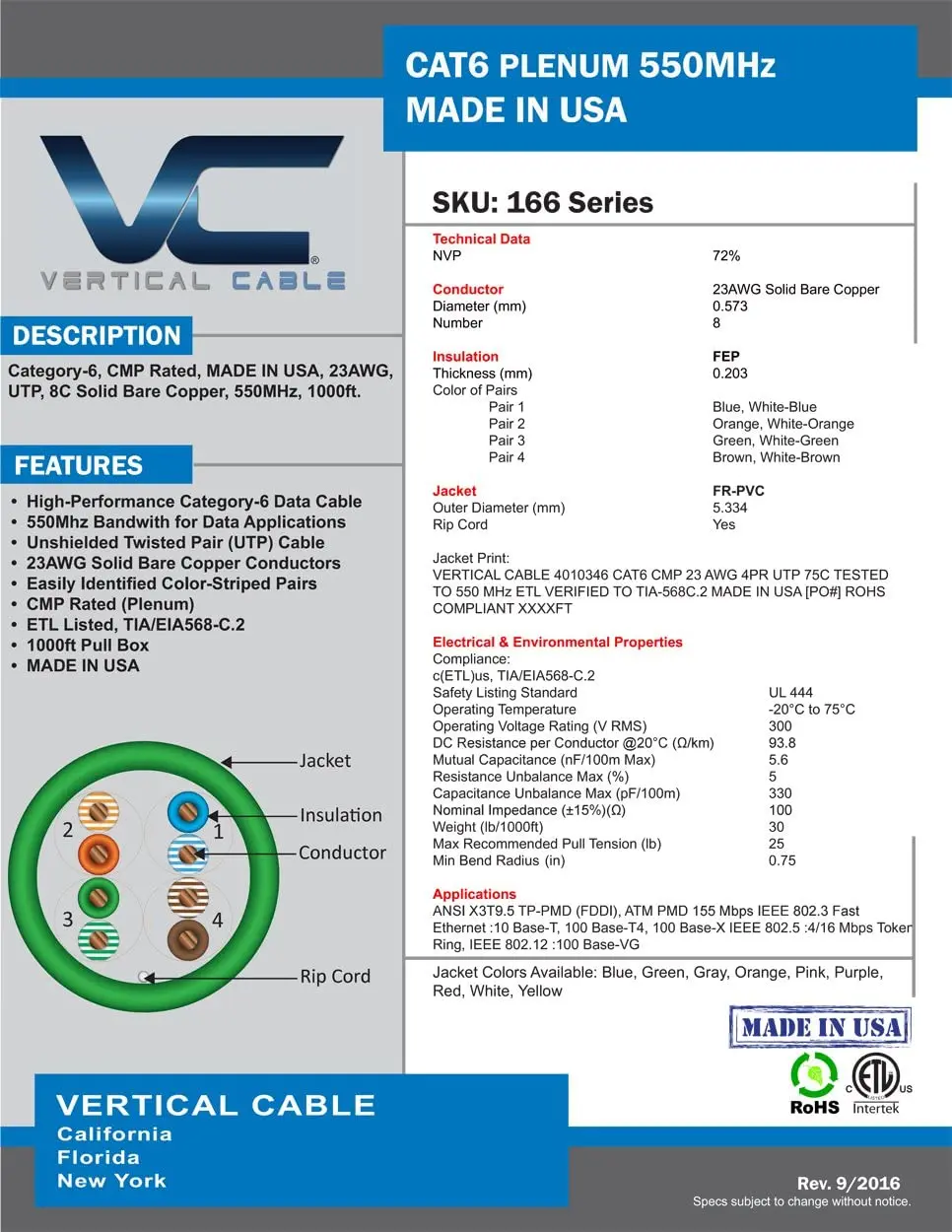

SpecificationVertical Cable-166-256/P/PR-Spec Sheet.pdf
