Tane 66 WG Track Mounted Overhead Door Commercial Contact
66-WG
WG Track Mounted Overhead Door Commercial Contact
SKU
23735
MPN:
66-WG
- For Mounting on Door Tracks - Better to have than on the floor.
- Decreases damage.
- 4 way adjustable magnet bracket
Overview
These are a great alternative to our GRI 4532L Overhead Door Contact. Instead of having the contact on the floor where it could get run over by vehicles causing damage; this contact fits on to the track of the garage door.
Features
- For Mounting on Door Tracks - Better to have than on the floor.
- Decreases damage.
- 4 way adjustable magnet bracket
- Wider Gap for reduced false alarms
- Installs better and faster than standards overheads
- Closed Loop, open loop and SPDT types (We however only carry the closed loop type)
- Armored Cable is Standard
Specifications

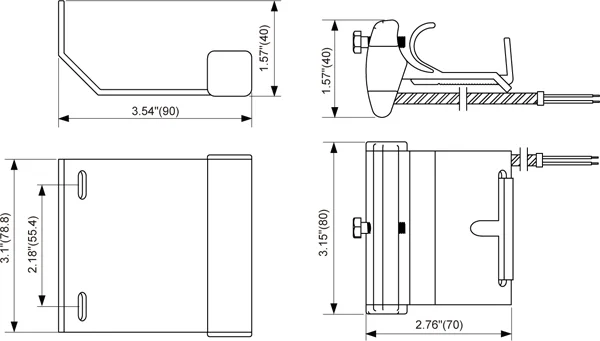

- Contact Size: 2.76″L×3.15″W×1.57″H (70mm×80mm×40mm)
- Standard Magnet Size: 3.54″L×3.1″W×1.57″H (90mm×78.8mm×40mm)
- Standard Gap: 2.5″(64mm)
- Colors: Aluminum
- 18″(458mm) Armor Leads Standard
- 36″(915mm) Armor Leads Available
Support
Manuals & Technical Documents
SpecificationTane-66-WG-Spec Sheet.pdfInstallation GuidesTane-66-WG-Installation Guide.pdfTechnical DrawingsTane-66-WG-Technical Drawing
