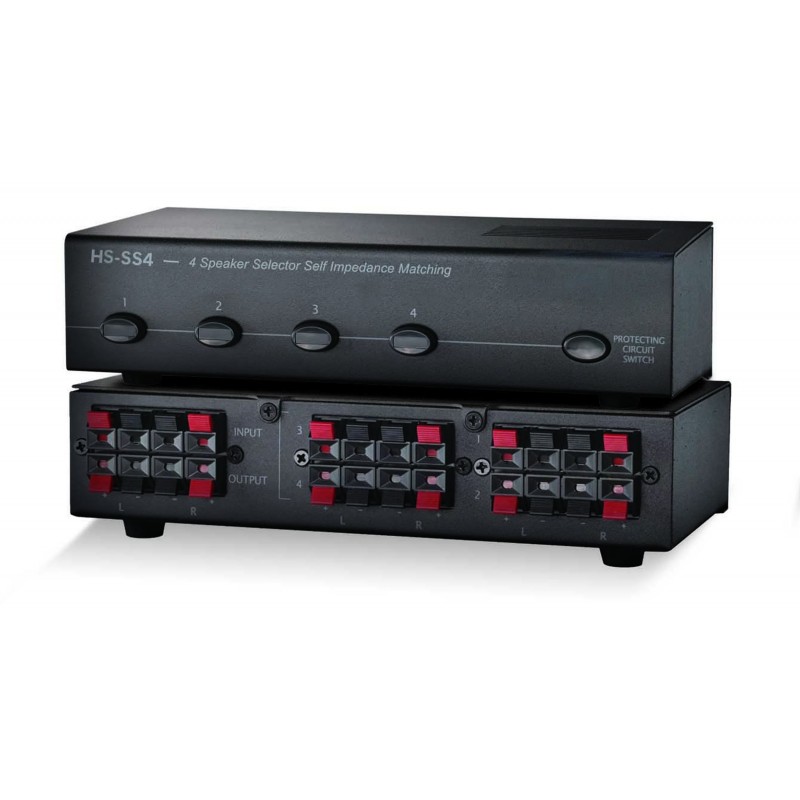

Metra HS-SS4 4-Zone Speaker Selector.

Distribute a stereo speaker-level signal to multiple listening zones with the Helios HS-SS4. This Low Profile 4 Zone Speaker Selector features a manually activated impedance protection circuit, accommodations for 14 gauge cable, and in-wall installation options. To prevent impedance to the amplifier from dropping below 5 Ohms, simply switch the protection function ON. It can also be turned OFF when used as part of a system incorporating impedance matching volume controls. The terminals at the rear of the speaker selector will accommodate up to 14 gauge cable; sufficient for cable runs exceeding 100 feet. For shorter distances 16-18 gauge cable suffices. CL-2 or CL-3 rated cable is recommended for compliance with local building codes. When connecting a speaker and amplifier, maintain polarity: positive to positive and negative to negative.

Features

• Route speaker cables from each listening zone to the speaker selector
• Route speaker cables from the amplifier to the speaker selector
• Remove approximately 8 inches of the outer jacket from the speaker cable (if necessary)
• Strip approximately 3/8 inches of insulation from each conductor and twist the exposed strands together to avoid fraying
• Press the push terminal and insert the conductor; release to make contact
• Set Impedance Protection to ON and OFF as necessary
• Replaces Metra AS-SS4
