AI-RTB7
2 Space Vented Cantilever Rack Shelf, 16"
SKU
173206
MPN:
AI-RTB7
Click image to open expanded view

Overview

AC Infinity AI-RTA7 16" Vented Cantilever Rack Shelf - 2 RU is designed for supporting non-rack mountable equipment such as tower computers, routers, UPS systems, and monitors. Fits into all standard 19 racks and cabinets, and takes 2U or 2RU of space. Vent design maximizes airflow and prevents hot spots, while maintaining structural integrity. Constructed of heavy-duty 2.4mm thick cold rolled steel with a black powder coated finish. With a dual flange design, the shelf has a weight capacity of 100 lbs. Internal usable width is 43.7 cm, usable depth is 40.0 cm, usable height is 8.1 cm, with a 7mm downward lip.

Features:
  • Fits all 19 racks and cabinets to hold various IT, network, and AV equipment.
  • Vent design maximizes airflow while maintaining structural integrity.
  • 100 pound weight capacity, up to 80% more than other cantilever rack shelves.
  • Heavy-duty 2.4mm thick SPCC cold rolled steel construction.
  • 2U height, 16 deep, includes 10-32 screw, washer, and cage nut set

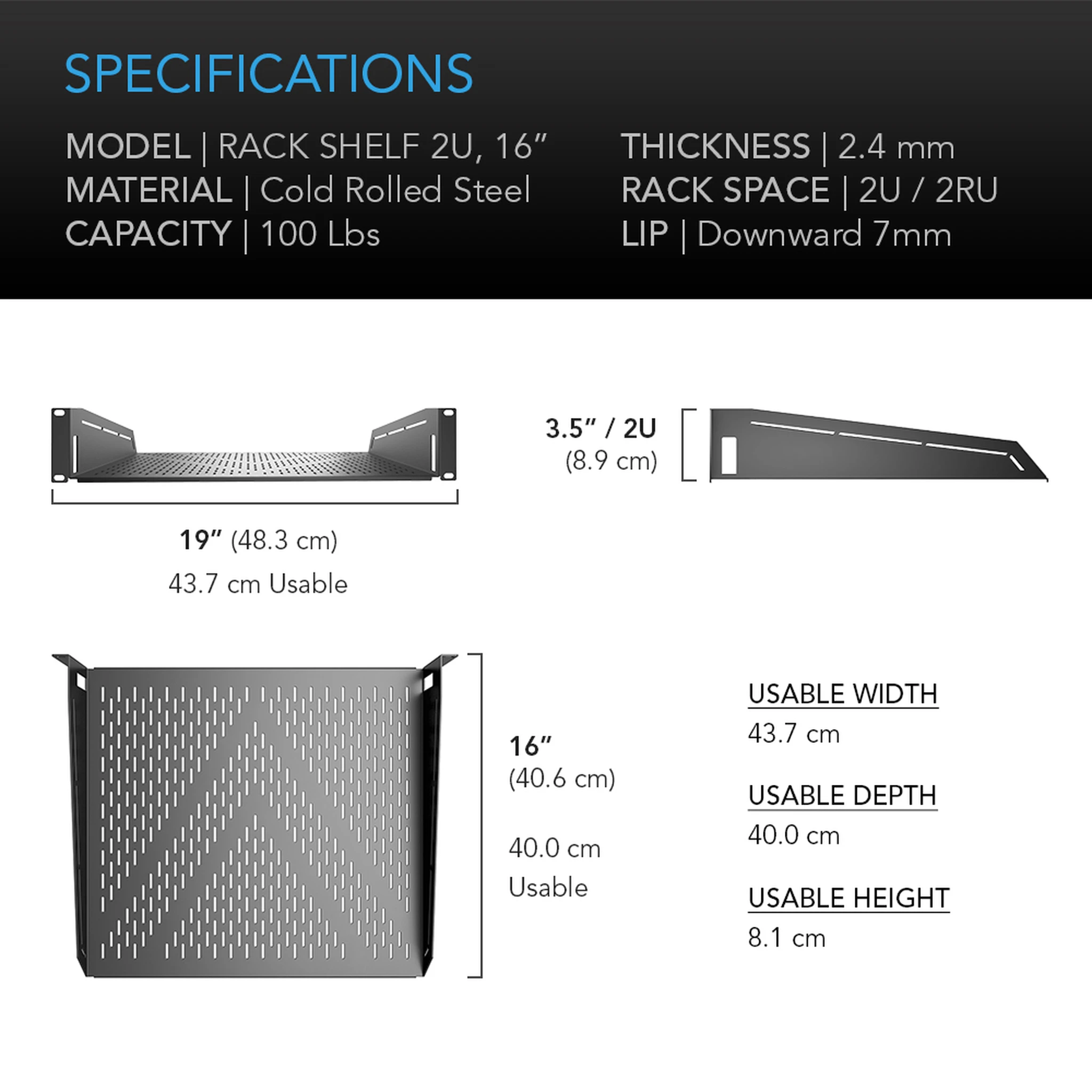

Specifications

Specifications:

  • Product and Mounting Dimensions
    • Total Dimensions: 19.0 x 16.0 x 3.5 in. (48.3 x 40.6 x 8.9 cm)
    • Rack Mount Size: Two Rack Units (2U)
    • Usable Width: 43.7 cm
    • Usable Depth: 40.0 cm
    • Usable Height: 8.1 cm
    • Lip: 7mm Downward
    • Screw Hole Size: .24 x 0.35 in. (6.1 x 9.0 mm) Obround
    • Hole to Hole Distance: 18.2 x 3.0 in. (46.4 x 7.7 cm)
  • Product Performance and Technical Specs
    • Material: SPCC Cold Rolled Steel
    • Finish: Black Powder Coat
    • Thickness: 13 Gauge (2.4 mm)
    • Weight Capacity: 140 lbs.
    • Screws Sets Included: 10-32

Support

Manuals & Technical Documents

SpecificationAC Infinity-AI-RTB7-Spec Sheet.pdf
