AC Infinity AI-MPF40A MULTIFAN Mini 40mm Quiet USB Cooling Fan

AI-MPF40A
MULTIFAN Mini 40mm Quiet USB Cooling Fan
AC INFINITY
SKU
173174
MPN:
AI-MPF40A
  • Compact and energy-efficient USB fan designed various DIY cooling and ventilation projects.
  • Features a multi-speed controller to set the fan's speed to optimal noise and airflow levels.
  • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
    Report Incorrect Information

    Features

    Specifications

    Support

    Features

    • Compact and energy-efficient USB fan designed various DIY cooling and ventilation projects.
    • Features a multi-speed controller to set the fan's speed to optimal noise and airflow levels.
    • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
    • USB plug can power the fan through USB ports found behind electronics and on portable power banks.
    • Dimensions: 1.6 x 1.6 x 0.8 in. | Airflow: 12 CFM | Noise: 18 dBA | Bearings: Dual Ball

    For electronics and components that requires more airflow; each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.

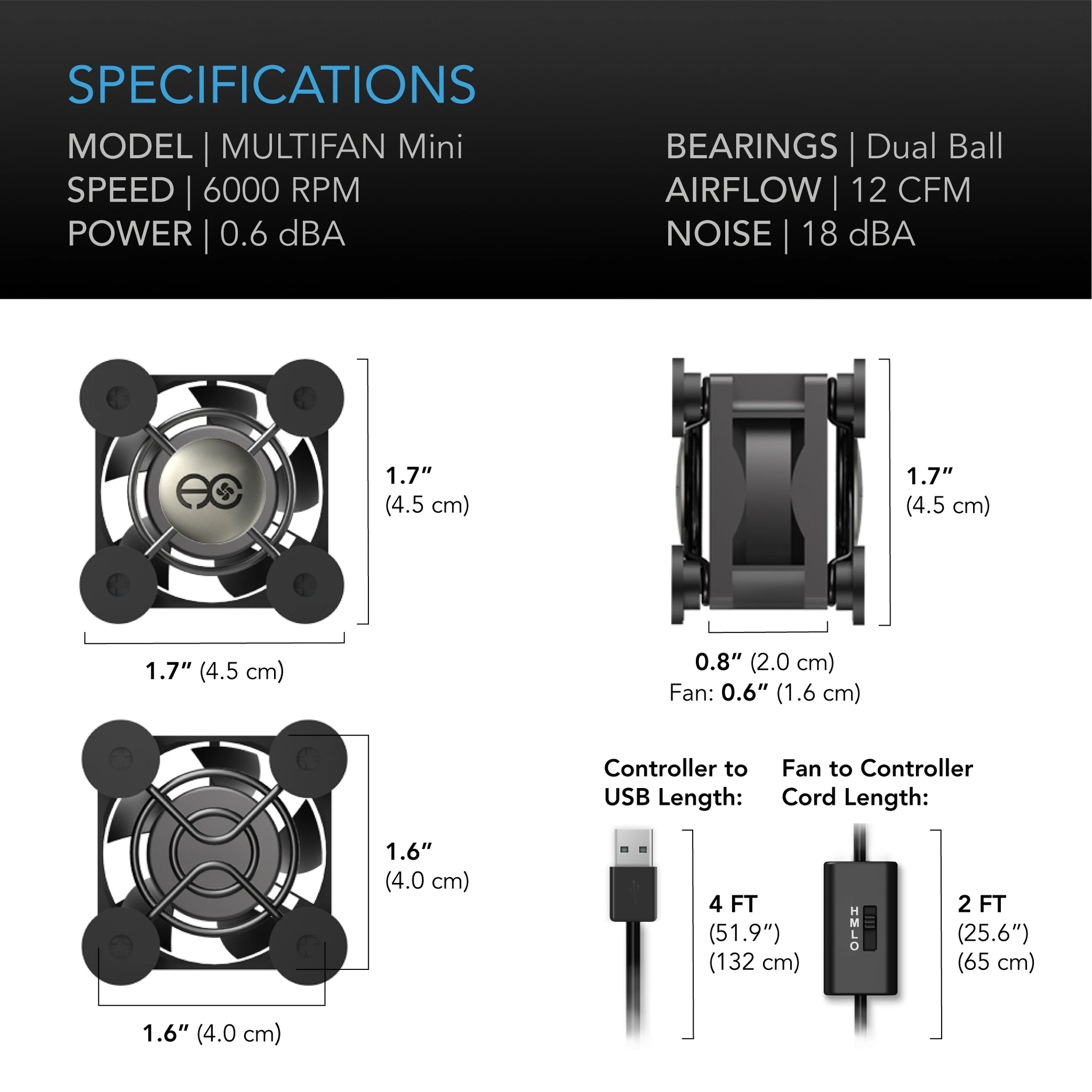

    Specifications

    Specifications:
    • Product Dimensions
      • Total Dimensions: 1.6 x 1.6 x 0.8 in (40 x 40 x 20 mm)
      • Hole to Hole Distance: 1.26 x 1.26 in. (3.2 x 3.2 cm)
      • Screw Hole Size: 0.1 in. (0.35 cm)
      • Power Cord Length: 72 in. (6 feet)
    • Product Performance and Technical Specs
      • Total Airflow: 12 CFM
      • Total Noise: 18 dBA
      • Speed: 6000 RPM
      • Operating Voltage: 3 to 7V DC
      • Power: 0.6 W
      • Current : 0.12 A
      • Wall Adapter Input: 100 to 240V AC
      • Static Pressure: 4.2 mm-H2O
      • Operating Humidity: 35 to 85% RH
      • Operating Temperature: 0 to 158°F
      • Fan Bearings: Dual Ball
      • Mounting Positions: Horizontal or Vertical
      • L10 Life Expectancy: 67,000 Hours

    Support

    Manuals & Technical Documents

    ManualsAC Infinity-AI-MPB140A-Manual.pdfSpecificationAC Infinity-AI-MPF40A-Spec Sheet.pdf

    Product Sheet

    Download
