- Designed to be mounted into any standard 19-inch rack to provide a secure storage space.
- Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.
- Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
AC Infinity AC-RDA2 Heavy-Duty Rack Drawer w/ Faceplate (2RU) is designed to be mounted into standard 19-inch racks to provide storage space. The drawer can securely hold various rack equipment such as cables, headphones, tools, manuals, and microphones. Features a black anodized aluminum faceplate. The remaining sides are fully enclosed using heavy-duty 2mm thick cold-rolled steel with a powder coat finish, and a cable passthrough slot in the rear. This rack drawer takes 2U of rack space and includes a mat and a 10-32 rack mounting screw set.
The aluminum faceplate is constructed from a solid block of high-grade alloy aluminum at 3mm thickness, then finished with a brushed black appearance. The panel is then CNC-machined, rounding each corner and chamfering each edge for a high-end look. The handle is designed to be concealed when not in use for a clean appearance and can be retracted when you need to pull open the drawer. This design makes it the perfect match for high-end audio/video and home theater racks.
- Designed to be mounted into any standard 19-inch rack to provide a secure storage space.
- Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.
- Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
- Retractable drawer handle is concealed when not in use for a clean and professional appearance.
- Takes up 2U of space. Includes mat, 10-32 screw set, rear grommet

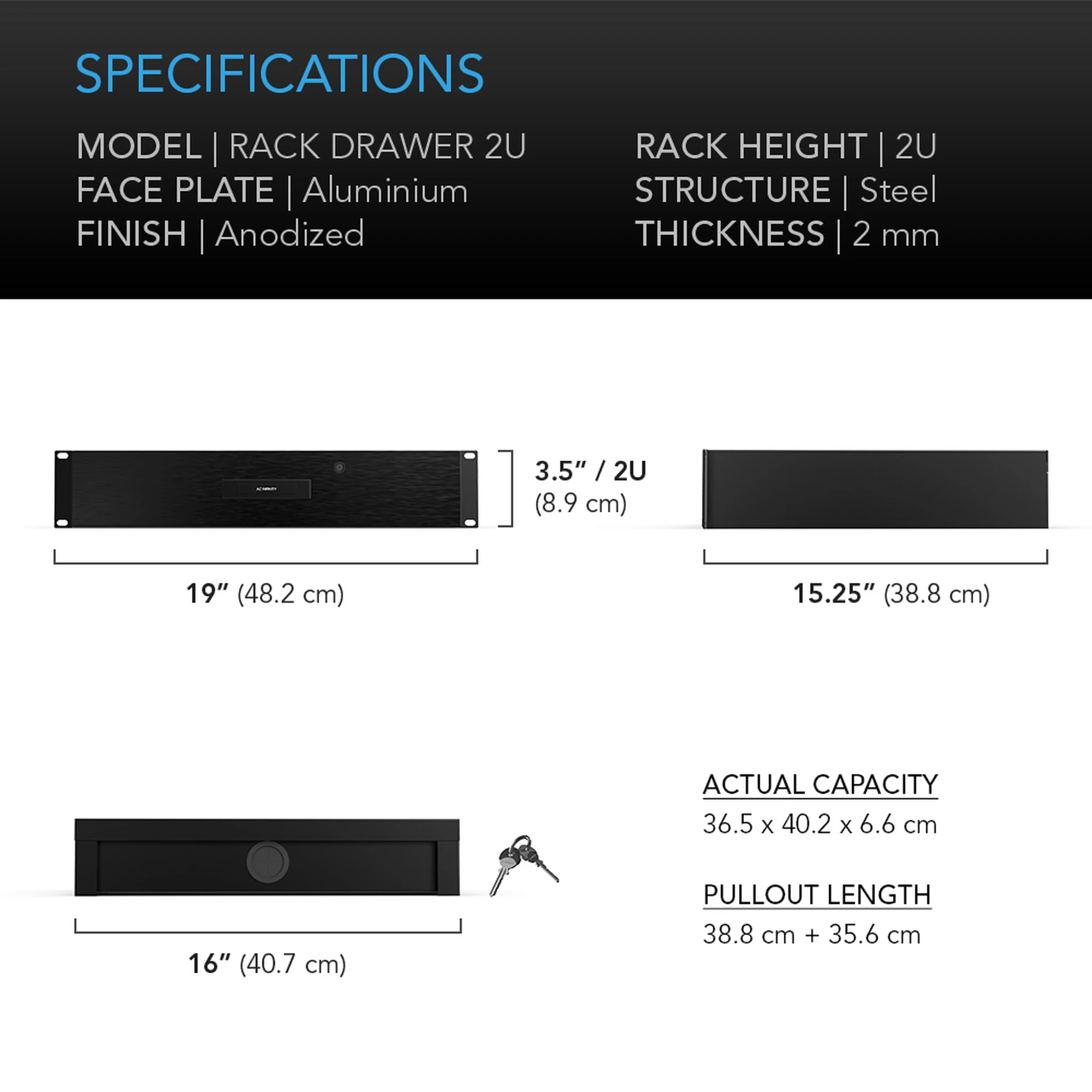

- Product and Mounting Dimensions
- Total Dimensions: 15.25 x 19 x 3.5 in. (38.8 x 48.2 x 8.9 cm)
- Rack Mount Size: Two Rack Unit (2U)
- Screw Hole Size: .24 x 0.35 in. (6.1 x 9.0 mm) Obround
- Hole to Hole Distance: 18.2 x 3.0 in. (46.4 x 7.7 cm)
- Capacity: 36.5 x 40.2 x 6.6 cm
- Pull Out Length: 38.8 cm + 35.6 cm
- Product Performance and Technical Specs
- Faceplate Material: Aluminium
- Faceplate Finish : Anodized Black with Brush
- Structure: Cold Rolled Steel
- Structure Finish: Black Powder Coat Paint
- Steel Thickness: 2mm
- Drawer Handle: Retractable Rotating
- Screws Sets Included: Four Piece #10-32 Rack Screws plus Washers and Cage Nuts
- Drawer Mat Included: Yes
- Rear Cable Grommet Included: Yes
- Keylock Included: No Key and Lock
