main product photo
FM-106-WH
WH Center Lead Surface Mount Type Contact, 10PK - White
SKU
23738
MPN:
FM-106-WH
Report Incorrect Information

Overview

Specifications

Support

Tane FM-106 WH Center Lead Surface Mount Type Contact, 10PK - White

Contact Size 1.32" x .51" x .3"
Standard Magnet Size 1.32" x .51" x .3"
Standard Gap .83"
Loop Open/Closed Normally Open
Max. Contact Rating W 10
Max. Initial Contact Resistance (mΩ) 100
Max. Switching Voltage (V) AC110/DC100
Color White

Manuals & Technical Documents

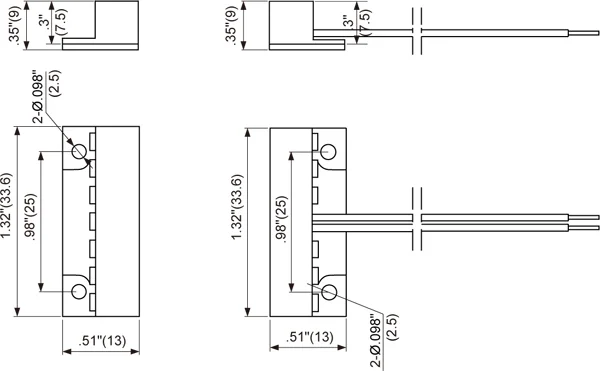

SpecificationTane-FM-106-GY-Spec Sheet.pdfInstallation GuidesTane-FM-106-GY-Installation Guide.pdfTechnical DrawingsTane-FM-106-GY-Technical Drawing

Product Sheet

Download
