Artison

Soundbar with Grille (Black)

Artison STUDIO65-BG 65.5" Wide Studio 65 Soundbar with grille.

• Driver Complement:
  • 8 - 3.5” (89mm) Long Throw Carbon Fiber Midrange / Woofers
  • 3 - 25mm Vifa XT Super Audio Tweeters
  • 2 -19mm Stage Tweeters
• Includes heavy duty wall mount brackets and hardware.
• Optional TV mounting brackets attach to the display's VESA mounts, allowing the audio to travel with the video even if the display is on an articulating arm.
• Extruded aluminum black anodized cabinet provides a system that will work with even the thinnest of displays without sacrificing performance.
• Side firing Stage Tweeters, make the sound stage extend far beyond the display.
• Long Throw Carbon Fiber Woofers and Vifa DX soft silk 25mm Super Audio Tweeters deliver state-of-the-art audio, for accurate and dynamic reproduction.
• Centered, rear input terminals allow for easy wire routing.
• Gold plated spring connectors ensure a good connection for the life of the installation.
• Includes a standard grille in black, perfectly matched to the soundbar.
• Custom grille options are available to match any size display, providing a seamless look and consistent quality audio without needing to replace the soundbar if a display has been upgraded to a larger size.

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

Soundbar with Grille (Black)

Artison STUDIO55-BG 54.1" Wide Studio 55 Soundbar with grille.

• Driver Complement:
  • 6 - 3.5” (89mm) Long Throw Carbon Fiber Midrange / Woofers
  • 3 - 25mm Vifa XT Super Audio Tweeters
  • 2 -19mm Stage Tweeters
• Optional TV mounting brackets attach to the display's VESA mounts, allowing the audio to travel with the video even if the display is on an articulating arm.
• Extruded aluminum black anodized cabinet provides a system that will work with even the thinnest of displays without sacrificing performance.
• Side firing Stage Tweeters, make the sound stage extend far beyond the display.
• Long Throw Carbon Fiber Woofers and Vifa DX soft silk 25mm Super Audio Tweeters deliver “state-of-the-art” audio, for accurate and dynamic reproduction.
• Centered, rear input terminals allow for easy wire routing
• Gold plated spring connectors ensure a good connection for the life of the installation.
• Includes a standard grille in black perfectly matched to the soundbar.
• Custom grille options are available to match any size display, providing a seamless look and reliable, consistent, quality audio without needing to replace the soundbar if a display has been upgraded to a larger size.

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

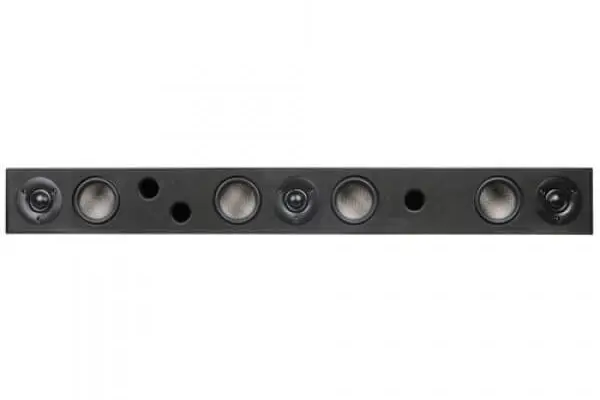

Soundbar with Grille (Black)

Artison STUDIO46-BG 46" Wide Studio 46 Soundbar with grille.

• Driver Complement:

  • 6 - 3.5” (89mm) Long Throw Carbon Fiber Midrange / Woofers
  • 3 - 25mm Vifa DX Super Audio Tweeters
  • 2 - 19mm Stage Tweeters
• Optional TV mounting brackets attach to the display's VESA mounts, allowing the audio to travel with the video even if the display is on an articulating arm.
• Extruded aluminum black anodized cabinet provides a system that will work with even the thinnest of displays without sacrificing performance.
• Side firing Stage Tweeters, make the sound stage extend far beyond the display.
• Long Throw Carbon Fiber Woofers and Vifa DX 25mm Super Audio Tweeters deliver “state-of-the-art” audio, for accurate and dynamic reproduction.
• Centered, rear input terminals allow for easy wire routing.
• Gold plated spring connectors ensure a good connection for the life of the installation.
• Includes standard grille in black, perfectly matched to soundbar.
• Custom grille options are available to match any size display, providing a seamless look and reliable, consistent, quality audio without needing to replace the soundbar if a display has been upgraded to a larger size.

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

Soundbar with Grille (Black)

Artison STUDIO39-BG 38.0" Wide Studio 39 Soundbar with grille.

• Driver Complement:
  • 4 - 3.5”(89mm) Long Throw Carbon Fiber Midrange / Woofers
  • 3 - 25mm Vifa DX Super Audio Tweeters
  • 2 - 19mm Stage Tweeters
• Optional TV mounting brackets attach to the display's VESA mounts, allowing the audio to travel with the video even if the display is on an articulating arm.
• Extruded aluminum black anodized cabinet provides a system that will work with even the thinnest of displays without sacrificing performance.
• Side firing Stage Tweeters, make the sound stage extend far beyond the display.
• Long Throw Carbon Fiber Woofers and Vifa DX 25mm Super Audio Tweeters deliver “state-of-the-art” audio, for accurate and dynamic reproduction.
• Centered, rear input terminals allow for easy wire routing.
• Gold plated spring connectors ensure a good connection for the life of the installation.
• Includes standard grille in black, perfectly matched to the soundbar.
• Custom grille options are available to match any size display, providing a seamless look and reliable, consistent, quality audio without needing to replace the soundbar if a display has been upgraded to a larger size.

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

In-Wall Pre-Construction Subwoofer

RCC (Reactance Cancelling Configuration) In-Wall Subwoofers deliver state-of-the-art technology that is designed to be heard and not seen.

• Redesigned from the ground up, the MK II RCC subwoofers are based on an all-new four-inch by six-inch driver that provides deep, articulate, and powerful bass
• Twice the excursion – Excursion is the linear distance a driver travels from its resting position. Increased excursion equates to a greater dynamic presentation.
• Optimized DCR (DC resistance) ¬– The DC Resistance of the voice coils is optimized to allow more subwoofers to be connected in-series to a single RCC1000-SA amplifier. The all-new voice coil allows for up to four RCC320 subwoofers to be connected to a single RCC100-SA amplifier.
• Pistonic Driver Technology – In order to deliver accurate sound, high sound pressure levels, and no distortion to the music, the entire surface area of the speaker cone must remain in perfect alignment throughout its frequency-range. The all-new RCC subwoofer speaker behaves as a perfect piston throughout its musical range, so you can enjoy the realism and response of a perfect subwoofer system.
• Solid Aluminum Cabinets
• The ideal subwoofer cabinet needs to be a balance of cost, stiffness, mass, and dampness (resonances). Aluminum, more than other popular materials such as MDF (medium-density fiberboard), achieves a perfect balance between these four critical elements. Additionally, anodized aluminum is impervious to the outside elements, making the IP65 rated RCC320 a perfect solution for outdoor entertainment.
• Elegant Grille Options
• Grille Plastic ID updated to match IP MICRO Aperture Speakers
• New included HVAC Style Ceiling grille
• Easy Install
• Installs into a standard 2 x 4 stud bay pre or post construction

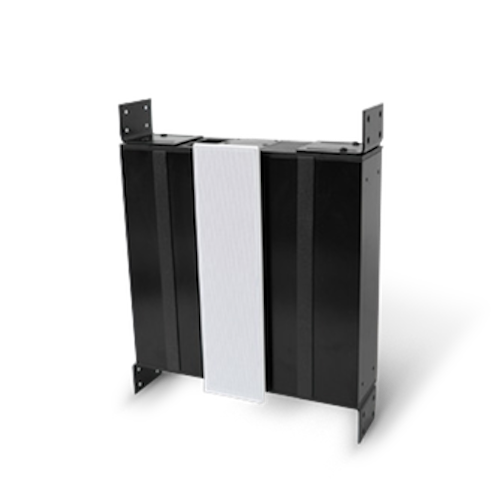

In-Wall Pre-Construction Subwoofer

The RCC160 MKII features Artison’s Reactance Cancelling Configuration, an innovation that eliminates unwanted mechanical forces that cause unwanted vibration and distortion; this means all you hear is the music as the artist intended.

• Redesigned from the ground up, the MK II RCC subwoofers are based on an all-new four-inch by six-inch driver that provides deep, articulate, and powerful bass
  • Twice the excursion – Excursion is the linear distance a driver travels from its resting position. Increased excursion equates to a greater dynamic presentation.
  • Optimized DCR (DC resistance) ¬– The DC Resistance of the voice coils is optimized to allow more subwoofers to be connected in-series to a single RCC1000-SA amplifier. The all-new voice coil allows for up to four RCC320 subwoofers to be connected to a single RCC100-SA amplifier.
  • Pistonic Driver Technology – In order to deliver accurate sound, high sound pressure levels, and no distortion to the music, the entire surface area of the speaker cone must remain in perfect alignment throughout its frequency-range. The all-new RCC subwoofer speaker behaves as a perfect piston throughout its musical range, so you can enjoy the realism and response of a perfect subwoofer system.
• Solid Aluminum Cabinets
  • The ideal subwoofer cabinet needs to be a balance of cost, stiffness, mass, and dampness (resonances). Aluminum, more than other popular materials such as MDF (medium-density fiberboard), achieves a perfect balance between these four critical elements. Additionally, anodized aluminum is impervious to the outside elements, making the IP65 rated RCC320 a perfect solution for outdoor entertainment.
• Elegant Grille Options
  • Grille Plastic ID updated to match IP MICRO Aperture Speakers
  • New included HVAC Style Ceiling grille
• Easy Install
  • Installs into a standard 2 x 4 stud bay pre or post construction

In-Wall Retrofit Subwoofer

RCC (Reactance Cancelling Configuration) In-Wall Subwoofers deliver state-of-the-art technology that is designed to be heard and not seen.

• Driver performance improvement and approximately Double the sensitivity and DCR (Degradation Category Rating) adjusted to allow more subs per amp.  Each sub is Nominal 8 Ohm impedance
• Grille Plastic ID updated to match IP MICRO Aperture Speakers
• Installed into a standard 2 x 4 stud bay pre or post construction
• Special adsorptive damping material coupled with multiple custom Long Throw Drivers allow for deep powerful bass from a small space.
• Special aluminum enclosures make the addition of a powerful yet invisible bass system a onetime operation.
• Bass projects from a slot, which is located between two opposing sets of drivers, creating the vibration free technology of the RCC Series

1,000 Watt Subwoofer Amplifier

The RCC1000 Subwoofer Amplifier is a powerful Class D amplifier that delivers 1, 000 watts of output specifically engineered with advanced DSP software to power the RCC320 and RCC640 series In-Wall Subwoofers. Each RCC1000-SA drives two RCC320 or one RCC640 subwoofer.

Nano Backpack P5 Surround Sound Processor / Amplifier

The Artison Nano Backpack P5 ultra-shallow surround sound processor/amplifier is easily mounted behind a display for powerful performance from a barely noticeable package, with multiple digital and analog inputs for maximum flexibility. The Artison Nano Backpack P5 is a compact, ultra-thin theater hub for the digital age. Measuring a mere 1.1” H x 11.75” W x11.5” D, Backpack is specifically designed for high performance home theater audio and ultra-simple installation; whether it is mounted on the wall, in the wall, or behind a flat panel display.

Sound Surface 80 Watt Speaker

Artison Surface 80 speakers provide customers with quality sound with no visual impact to the room. The Surface speakers are designed to be sheet rock mudded into the wall which allows them to be textured for a seamless final install and invisible audio.

Sound Surface 40 Watt Speaker

Artison Surface 40 speakers provide customers with quality sound with no visual impact to the room. The Surface speakers are designed to be sheet rock mudded into the wall which allows them to be textured for a seamless final install and invisible audio.

Mezzanine Surround Satellites

Mezzanine surrounds are designed to acoustically blend with Artison front channel solutions using similar high-end drivers. The tweeters are wired out of phase and the baffles are angled making them hard to localize. Unique hybrid acoustic design is a Monopole/Dipole mix allowing for sound "steering" needed for movies - without changing the natural ambiance of a musical recording.

8" 2-Way Stereo In-Ceiling

Artison ARCHT-8 8-inch Frameless Kevlar Speaker (1 pair). Can be used in in-ceiling or in-wall applications. The ARCHT-8 model offers homeowners the refined, musical quality of Artison speakers for every room of their home. An ideal and complimentary solution when paired with Savant line of distributed audio solutions.

6.5" 2-Way Stereo In-Ceiling

6.5-inch Frameless Kevlar® Speaker (1 pair). Can be used in in-ceiling or in-wall applications. The ARCHT-6 model offers homeowners the refined, musical quality of Artison speakers for every room of their home. An ideal and complimentary solution when paired with Savant line of distributed audio solutions.

Twin Tweeter 8" Single In-Ceiling Speaker

8-inch Frameless Kevlar® Single Speaker (each). Can be used in in-ceiling or in-wall applications. The ARCHT-8-SSTT features dual tweeters for smaller rooms, or when premium stereo sound is required from a single speaker.

Twin Tweeter 6.5" Single In-Ceiling Speaker

6.5-inch Frameless Kevlar Single Speaker (each). Can be used in in-ceiling or in-wall applications. The ARCHT-6-SSTT features dual tweeters for smaller rooms, or when premium stereo sound is required from a single speaker.

Masterpiece Left/Center/Right

Artison Masterpiece Left/Center/Right Speakers are state-of-the-art loudspeakers with patented Dual Center Channel technology. The two enclosures contain four separate cabinets: two Center Channels one Left Channel and one Right Channel creating a true three channel home theater experience. This unique design delivers a center channel experience that appears to come from the middle of the screen without creating any additional wall clutter.

• Driver Complement per Cabinet:
  • 4 - 3.5” Carbon Fiber Midrange/Woofers
  • 16 - 1” ART Drivers in Curved Line Array
  • 1 - 1” Stage Tweeter
• Extruded aluminum black anodized enclosures offer light weight and incredible rigidity
• Proprietary carbon-fiber woofers for tight dynamic bass
• 25mm Stage Tweeters for smooth natural sound and sound field expansion
• 1" full range ART drivers in Curved Line Array for low distortion and controlled directivity
• Stage tweeters for sound field extension
• Price includes pair of speakers
• Accessories:
  • Custom size grilles match the size of the display available in light grey & black. Grilles are sold separately. See Grille Order Form to place order.
  • Universal Mounting Brackets / Hardware Kit - ordered separately
  • Optional In-Wall Kit - ordered separately (note that speakers can be mounted on-wall with no additional components)

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

Portrait Left/Center/Right

Portrait Left/Centre/Right speakers are state-of-the-art loudspeakers, with patented Dual Centre channel technology. The two enclosures contain four separate cabinets: two centre channels, one left channel, and one Right channel creating a true three channel home theater experience. This unique design delivers a center channel experience that appears to come from the middle of the screen, without creating any additional wall clutter.

• Driver Complement per Cabinet:
  • 4 - 3.5” Carbon Fiber Midrange/Woofers
  • 2 - XT25 Super Audio Tweeters, 15° Swivel Mount
  • 1 - 1” Stage Tweeter
• Extruded aluminum enclosures offer light weight and incredible rigidity
• Proprietary carbon-fiber woofers for tight, dynamic bass
• XT tweeters create unmatched clarity, swivel mount allows fine-tune to listening positioning
• Stage tweeters for sound field extension
• Price includes pair of speakers
• Accessories:
  • Custom size grilles match the size of the display, available in light grey & black. Grilles are sold separately.  See Grille Order Form to place order.
  • Universal Mounting Brackets / Hardware Kit - ordered separately
  • Optional In-Wall Kit - ordered separately (note that speakers can be mounted on-wall with no additional components)

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

Sketch Left/Right/Center

Artison Sketch Left/Right/Center Speakers are state-of-the-art loudspeakers with patented Center Channel technology that creates precise placement of center the channel image. Two enclosures contain four separate cabinets: two Center Channels one Left Channel and one Right Channel. This unique design delivers a center channel experience that appears to come from the middle of the screen without creating any additional wall clutter.

• Driver Complement:
  • 2 - 3.5” Carbon Fiber Midrange/Woofers
  • 2 - 25mm DX Super Audio Tweeters
  • 1 - 1” Stage Tweeter
• Extruded aluminum enclosures offer light weight and incredible rigidity
• Proprietary carbon-fiber woofers for tight dynamic bass
• XT tweeters create unmatched clarity
• Stage tweeters for sound field extension
• Price includes pair of speakers
• Accessories:
  • Custom sized grilles match exact size of the display, available in light grey or black. Grilles are sold separately.  See Grille Order Form to place order.
  • Universal Mounting Brackets / Hardware Kit - ordered separately
  • Optional In-Wall Kit - ordered separately

Click here to access Savants CUSTOM GRILLE DESIGN TOOL

LCR In-Wall Kit

LCRDM-IW-KIT

Universal Mounting Brackets & Hardware

65.5" to 105.5" Width

UMB-75 100

Universal Mounting Brackets & Hardware

50.5" to 79.5" Width

UMB-55 80

65.5" to 105.5" Universal Mounting Brackets & Hardware

65.5" to 105.5" Width

UMB-46-80
