AC Infinity HS2060A-X AXIAL 2060 MUFFIN High Speed AC Cooling Fan
Overview
AC Infinity HS2060A-X AXIAL 2060 MUFFIN AC Cooling Fan is a heavy duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. Includes a 4 foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and be converted into lead wires to be connected to a wired AC power source. Also includes two 200 millimeter metal fan guards and a mounting screw set.
The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. Impedance protected motors contain windings that has a higher resistance to heat during a rotor lock. Containing long life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.
This high-speed fan is suitable in applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.
Features:
Features
- Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
- Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.
- Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
- High Speed: This model is designed to maximize airflow and can be too loud for some applications.
- 200 x 200 x 60 mm (7.87 x 7.87 x 2.36 in.) | 100 to 120V AC | Airflow: 425 CFM | Noise: 65 dBA | Speed: 3200 RPM

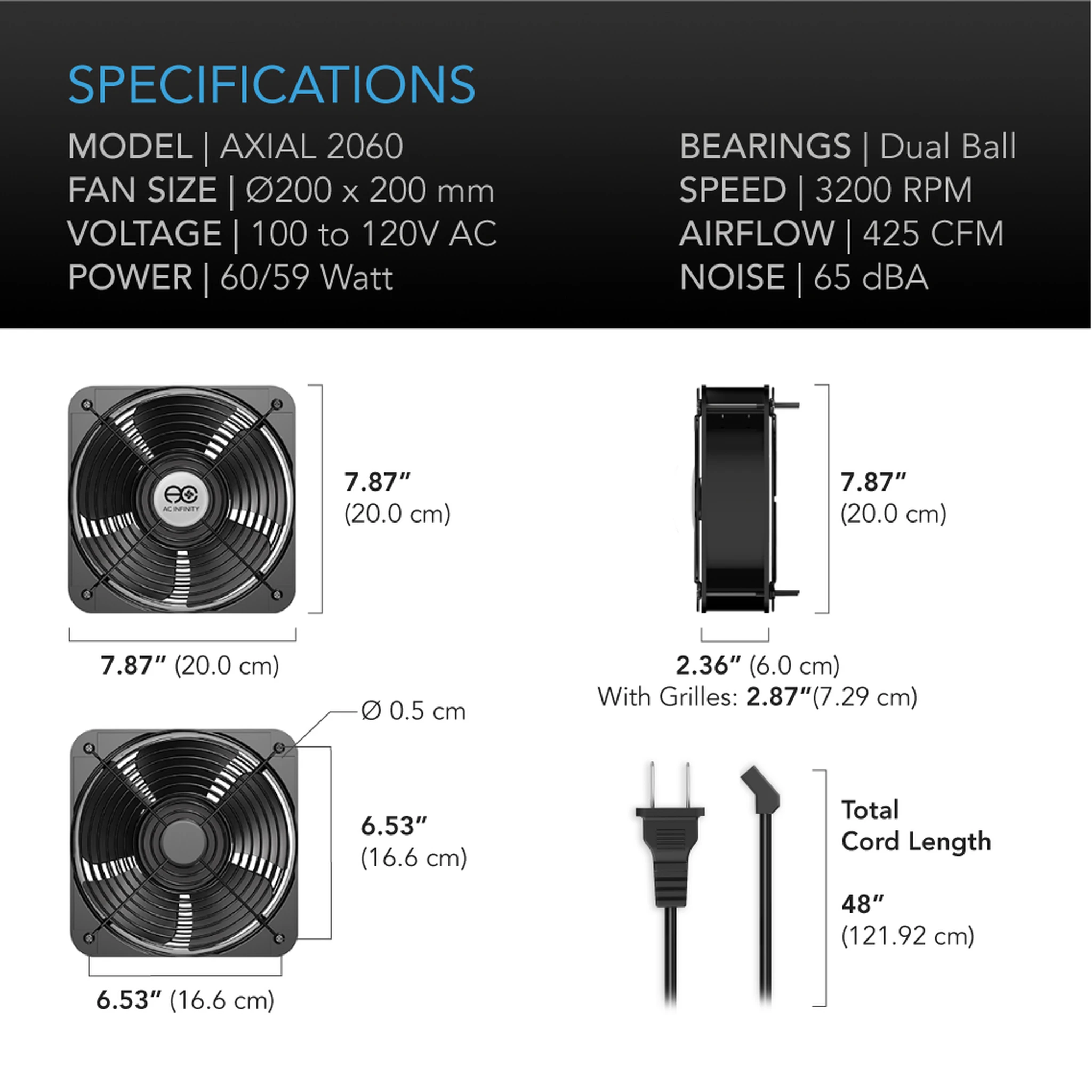

Specifications
- Product Dimensions
- Total Dimensions: 7.87 x 7.87 x 2.36 in. (20.0 x 20.0 x 6.0 cm)
- Hole to Hole Distance: 6.53 x 6.53 in. (16.6 x 16.6 cm)
- Screw Hole Size: 0.19 in. (0.5 cm)
- Cord Length: 48 in. (4 feet)
- Product Performance and Technical Specs
- Fan Model: HS2060A
- Total Airflow: 245 CFM
- Total Noise: 65 dBA
- Speed: 3200 RPM
- Operating Voltage: 100 to 120V AC
- Power: 60 W
- Current: 0.85 A
- Static Pressure: 17.0 mm-H2O
- Operating Humidity: 35 to 85% RH
- Operating Temperature: 32 to 140°F
- Fan Bearings: Dual Ball
- Mounting Positions: Horizontal or Vertical
- L10 Life Expectancy: 67,000 Hours
