AC Infinity AI-FMF120A 6" Passive Ventilation Grille - Black
- Designed to be installed into cabinets or walls to help increase ventilation.
- Can also be used in conjunction with a fan system to act as an intake or exhaust vent.
- Includes optional hardware to secure a 120mm fan onto the grille, and mount it into your cabinet or wall.
Overview
AC Infinity AI-FMF120A Frame 3 Passive Ventilation Grille 6in Black is a 6.3 by 6.3 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes an optional 120mm fan guard and hardware to secure a 120mm fan, the most popular size for computers and DIY applications, onto the grille. To mount your fan and grille into your cabinet or wall, you would need to cut a square hole approximately 5.04 by 5.04 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.
Features
- Designed to be installed into cabinets or walls to help increase ventilation.
- Can also be used in conjunction with a fan system to act as an intake or exhaust vent.
- Includes optional hardware to secure a 120mm fan onto the grille, and mount it into your cabinet or wall.
- Features a CNC machined aluminum frame with a brushed black finish; and honeycomb grille insert.
- Kit includes (4) wood mounting screws, (4) machine mounting screws with nuts, (4) fan mounting screws with nuts, and (1) 120mm spiral fan guard.
Specifications

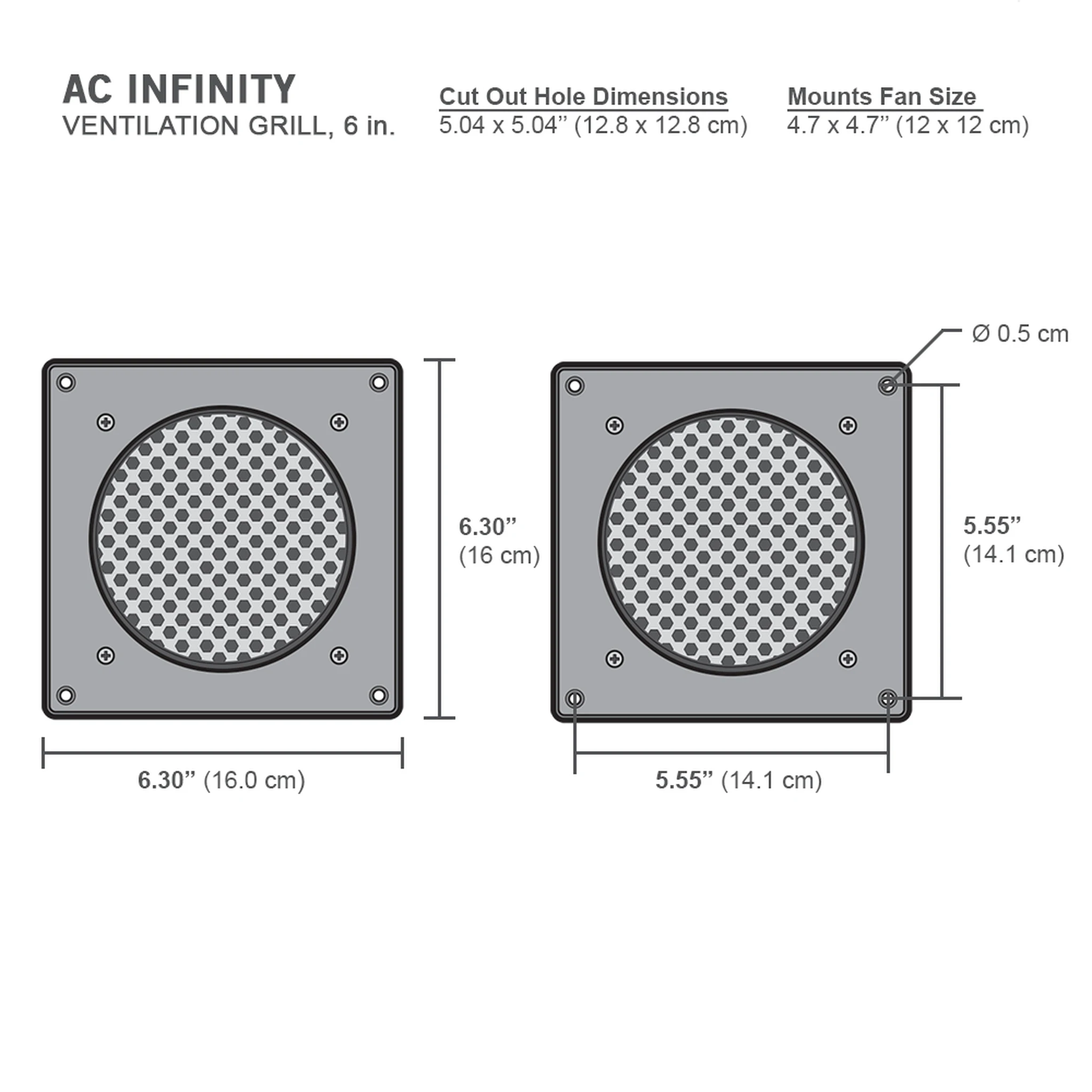

Product and Mounting Dimensions
- Total Dimensions: 6.30 x 6.30 x 0.12 in (16.0 x 16.0 x 0.3 cm)
- Required Mounting Hole: 5.04 x 5.04 in (12.8 x 12.8 cm)
- Hole to Hole Distance: 5.55 x 5.55 in (14.1 x 14.1 cm)
- Screw Hole Size: 0.197 in (0.5 cm)
- Number of Mountable Fans: 1
- Mountable Fan Size: 4.7 x 4.7 in (120 x 120 mm)
- Fan Guard Size: 4.7 x 4.7 in (120 x 120 mm)
