AC Infinity AI-ATC CONTROLLER 2 - Single Zone LCD Fan Thermal Controller
- Intelligent thermal fan controller with on-board processor and digital LCD display.
- Controls up to six AC Infinity Cabinet and USB Fans, see below for compatibility.
- Automated programming that self-adjusts cooling power in response to changing temperatures.
Overview

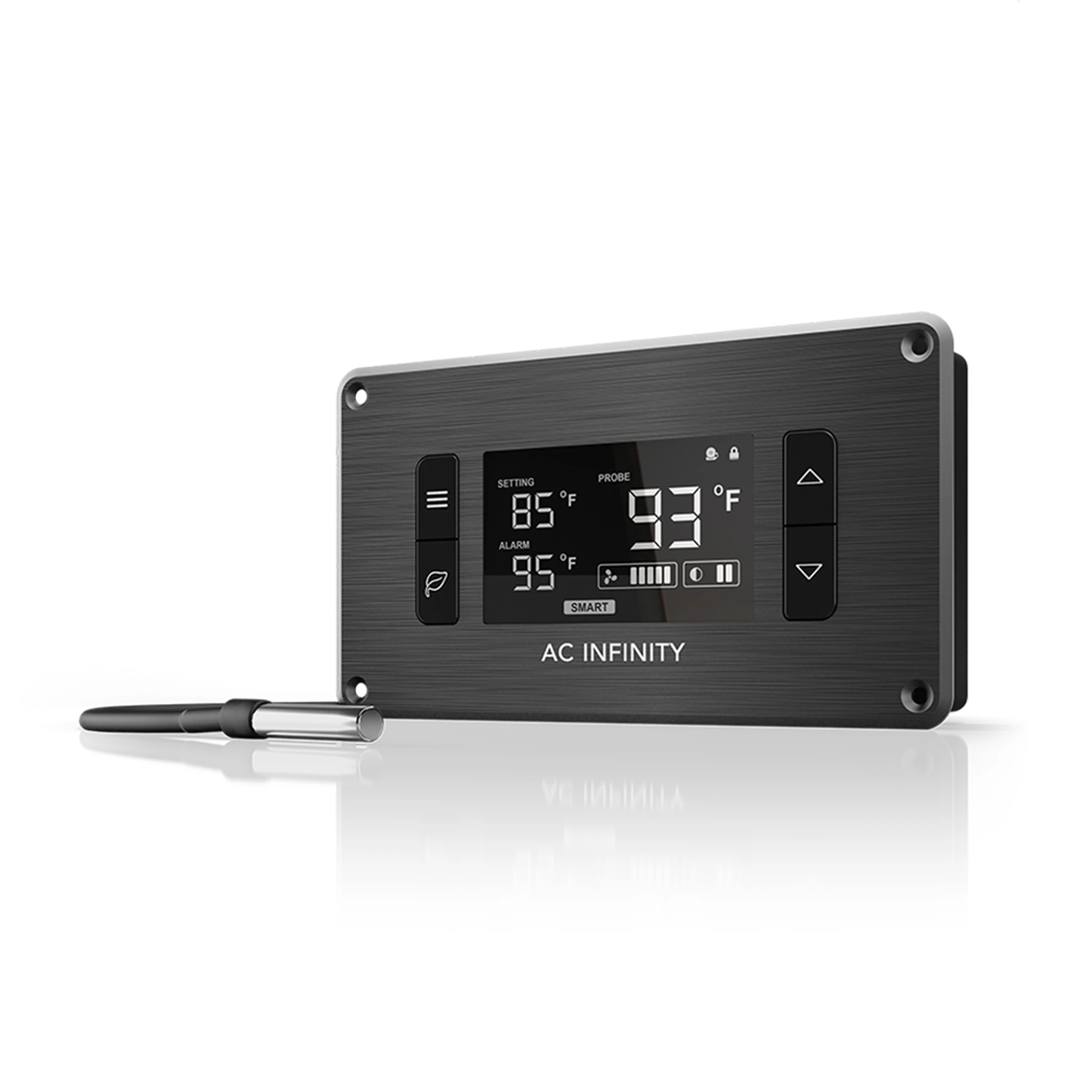

AC Infinity AI-ATC CONTROLLER 2 - Single Zone LCD Fan Thermal Controller is designed to control AC Infinity AIRPLATE Series cabinet fans and MULTIFAN Series component fans. The unit measures 5.2 by 3.1 by 1.1 inches, and contains a back lit LCD digital display, which can display Fahrenheit or Celsius. Its metal frame features a brushed anodized aluminum finish and can be mounted onto wall panels and cabinets up to 1.25 inches thick. On the back side are two USB fan ports, one power port, and one thermal probe port. Includes a 6-foot precision thermal probe that is water resistant. Operating temperature can be set between 32 to 140 degrees Fahrenheit. Complete kit includes thermal controller, mounting screws, plastic stencil, instruction manual, and 100-125V AC wall adapter.
Features
- Intelligent thermal fan controller with on-board processor and digital LCD display.
- Controls up to six AC Infinity Cabinet and USB Fans, see below for compatibility.
- Automated programming that self-adjusts cooling power in response to changing temperatures.
- Features an alarm system, display lock, six fan speeds, two buffer options, and power failure memory.
- Includes precision thermal probe, mounting screws, and power wall adapter
Specifications
Product Identification
- Manufacturer: AC Infinity Inc.
- Product Name: Standard Thermal Controller
- Product Model: AI-ATC
- Total Dimensions: 5.20 x 3.11 x 1.10 in. (13.2 x 7.9 x 2.8 cm)
- Backside Enclosure Dimensions: 4.41 x 2.68 in. (11.2 x 6.8 cm)
- Required Mounting Hole: 4.48 x 2.76 in. (11.4 x 7.0 cm)
- Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
- Screw Hole Size: 0.119 in (0.3 cm)
- Display Size: 2.25 x 1.25 in. (4.7 x 3.2 cm)
- Cord Length: 72 in. (6 feet)
- Thermal Probe Length: 72 in. (6 feet)
- Maximum Fans Controlled: 6
- Max Power Supported : 10 W
- Programming Temperatures: 32 to 140°F
- Operating Voltage: 3 to 7V DC
- Power: 10 W
- Current: 2 A
- Wall Adapter Input: 100 to 240V AC
- Operating Humidity: 35 to 85% RH
