AC Infinity AC-DCF6 6" Duct Carbon Filter
AC-DCF6
6" Duct Carbon Filter
SKU
173274
MPN:
AC-DCF6
- Designed to eliminate odors and chemicals for grow tents and hydroponics room.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.
- Contains heavy-duty aluminum flanges, galvanized steel meshing, and clothed pre-filter.
Overview
AC Infinity AC-DCF6 6" Duct Carbon Filter is a high-airflow duct filter designed to use activated carbon to eliminate odors and chemicals, popularly used for hydroponics, grow rooms, kitchens, smoking areas, and other ventilation projects. Features premium-grade Australian Virgin charcoal bed. The filter can be used in conjunction with an inline duct fan to act as both intake and exhaust configuration. Heavy-duty construction contains aluminum flanges and dual-sided galvanized steel mesh. The flanges can also be reversed to prolong the life of the filter. Includes a machine washable pre-filter cloth to prevent carbon residue.
Features
- Designed to eliminate odors and chemicals for grow tents and hydroponics room.
- Features premium-grade Australian charcoal with higher adsorption and longer life rating.
- Contains heavy-duty aluminum flanges, galvanized steel meshing, and clothed pre-filter.
- Enables maximum airflow passthrough for both intake and exhaust configurations.
- Duct Opening: 6 | Length: 16" | Airflow Rating: 410 CFM | Carbon: Australian RC412 at 1200+ IAV | Thickness: 38mm

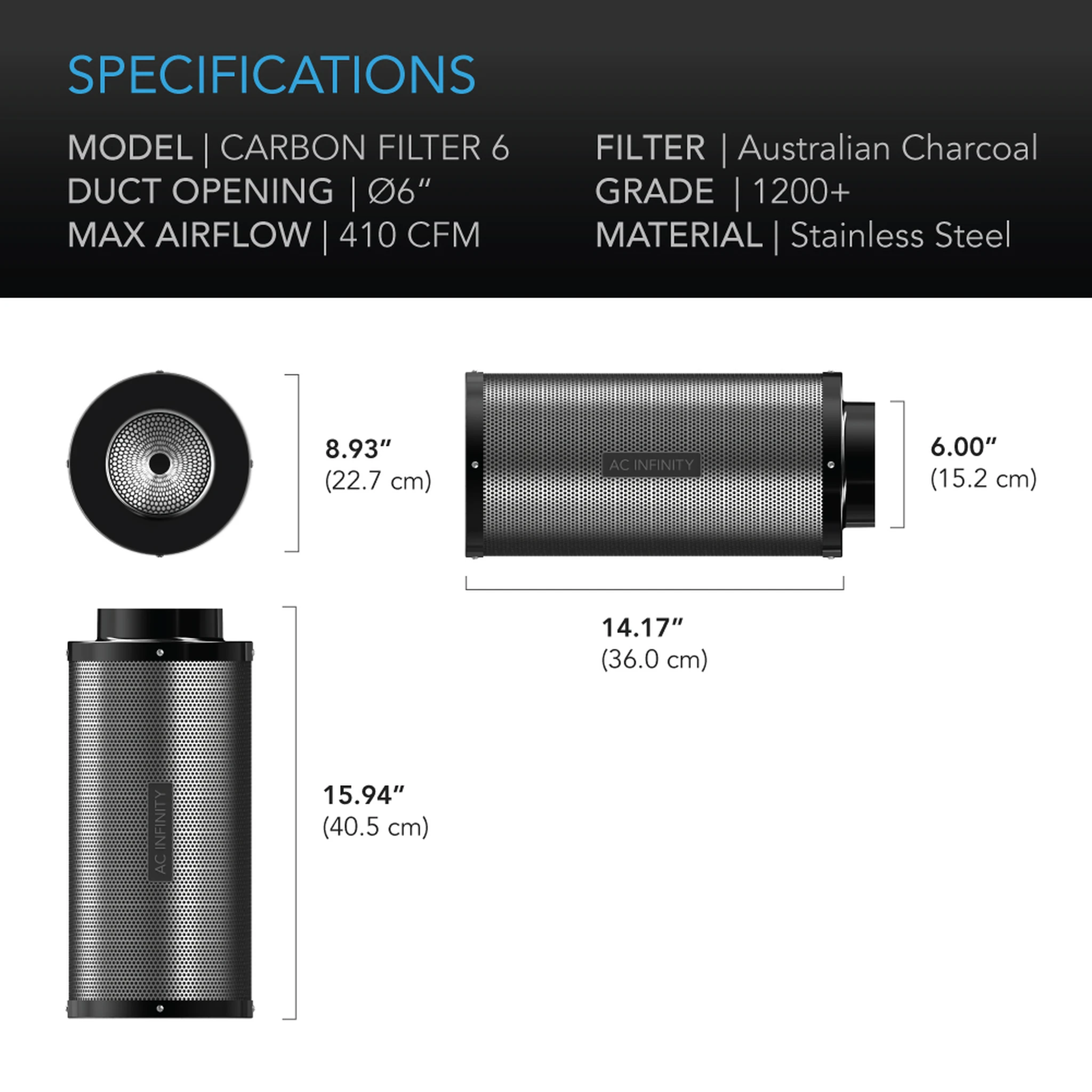

Specifications
- Product and Mounting Dimensions
- Duct Opening Size: 6"
- Total Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)
- Flange Length: 1.57 in. (4.0 cm)
- Product Performance and Technical Specs
- Flange Material Aluminum
- Flange Design Reversible
- Mesh Material: Galvanized Steel
- Carbon Type: Australian Virgin RC412
- Carbon Grade: 1200+ IAV
- Carbon Thickness: 38mm
- Maximum Airflow: 410 CFM
Support
Manuals & Technical Documents
ManualsAC Infinity-AC-DCF6-Manual.pdfSpecificationAC Infinity-AC-DCF6-Spec Sheet.pdf
