AC-ATT3
AIRTITAN T3 6" Crawlspace and Basement Ventilation Fan, IP-44 w/ Smart Programmer
SKU
173289
MPN:
AC-ATT3

Overview

AC Infinity AC-ATT3 AIRTITAN T3 6" Crawlspace and Basement Ventilation Fan, IP-44 w/ Smart Programmer is a high-airflow ventilator fan designed to control the temperature and humidity levels of your crawlspace, basement, attic, and garage. This system can also reduce humidity levels to prevent mold growth, while ventilating out odors and other harmful pollutants like Radon from your home. Fans are set to blow towards the mounting frame. Features a LCD display with smart thermostat and dehumidistat control, as well as customizable fan speeds. Included corded sensor probe plugs into the controller to provide temperature and humidity readings. Heavy-duty build includes a anodized aluminum mounting frame and IP-44 rated fans that are CE and RoHS certified. Features dual 120mm PWM-controlled DC fans that are highly efficient in maximizing airflow at lower noise and power levels. Includes hardware and 6-foot corded power supply needed to mount the unit onto a surface and power it through an outlet.
Smart Programming Controller included with each unit features active temperature and humidity monitoring. Fan speeds can be programmed to automatically adjust to high and low temperatures and humidity. The program can also set the fans to run continuously or on a timer at custom speeds. Also features alarm warnings, fan failure alerts, eco-mode, and backup memory. Includes a 12-foot corded sensor probe. Up to two AIRTITAN T3 or two AIRTITAN T7 can be linked to one controller to share the same programming.
Heavy-Duty Performance is supported by a heavy-duty aluminum enclosure with spiral fan guards. Utilizing DC motors that are controlled using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. In addition, the 120mm fan is IP-44 rated to be highly resistant to liquids and dust particles. The motor houses dual-ball bearings that are rated at 67,000 hours and allow this fan system to be mounted horizontally or vertically.

Features:

  • A high-airflow fan designed to provide temperature and moisture control for crawl spaces and basements.
  • Reduce humidity to prevent mold growth, while ventilating out odors and pollutants with fresh air.
  • Programmable controller with corded probe, can adjust airflow in response to temperatures and humidity.
  • Heavy-duty anodized aluminium frame with IP-44 rated fans to be highly resistant to liquids and dust.
  • Includes Wall Adapter | Dims.: 6.3 x 6.3 x 1.8 in. | Airflow: 120 CFM | Noise: 30 Dba | Bearings: Dual Ball

Specifications

Specifications:
  • Product and Mounting Dimensions - Controller
    • Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
    • Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
    • Screw Hole Size: 0.119 in (0.3 cm)
    • Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
    • Cord Length to Plug: 72 in (6 feet)
    • Sensor Probe Length: 144 in. (12 feet)

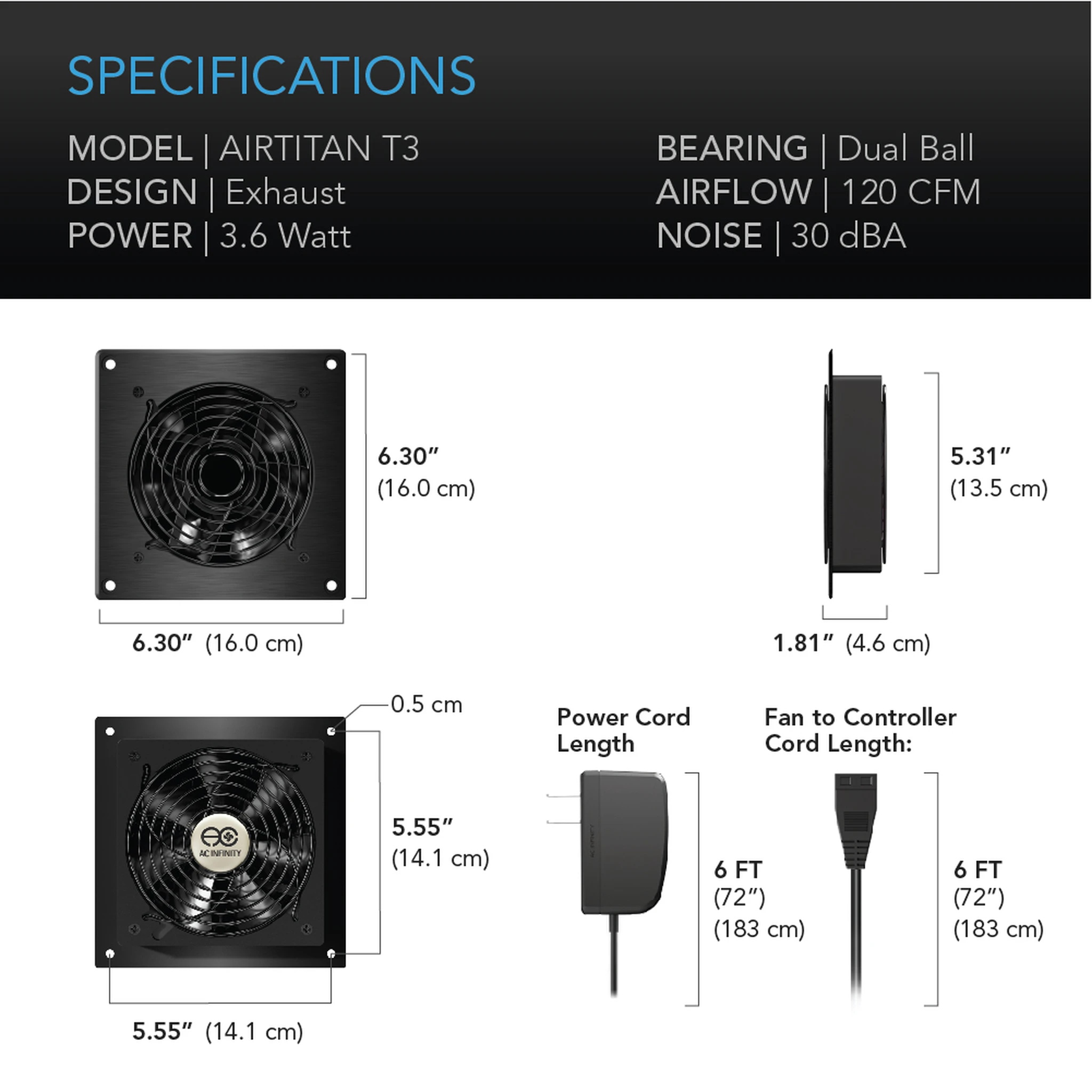

      • Product and Mounting Dimensions - Fan Unit
        • Total Dimensions: 6.30 x 6.30 x 1.81 in (16.0 x 16.0 x 4.6 cm)
        • Backside Enclose Dimension: 4.88 X 4.88 in (12.4 x 12.4 cm)
        • Required Mounting Hole: 5.55 x 5.55 in (14.1 x 14.1 cm)
        • Hole to Hole Distance: 4.8 in. (12.2 cm)
        • Screw Hole Size: 0.197 in. (0.5 cm)
        • Cord Length to Plug: 72 in (6 feet)
      • Product Performance and Technical Specs
        • Total Airflow: 240 CFM
        • Total Noise: 32 dBA
        • Static Pressure: 5.46 mm-H2O
        • Operating Voltage: 12V DC
        • Power: 7.2 W
        • Current: 0.6 A
        • Wall Adapter Input: 100 to 240V AC
        • Operating Humidity: 35 to 85% RH
        • Operating Temperature: 32 to 140°F
        • Fan Bearings: Dual Ball
        • Mounting Positions: Horizontal or Vertical
        • L10 Life Expectancy: 67,000 Hours
